3D printer Modeling
3D printer Modeling
We offer modeling and processing using large-scale 3D printers and precision full-color 3D printers. We have an in-house design department with strong modeling capabilities, so you can consult us from the creation of 3D data.
Painting after modeling is also available.

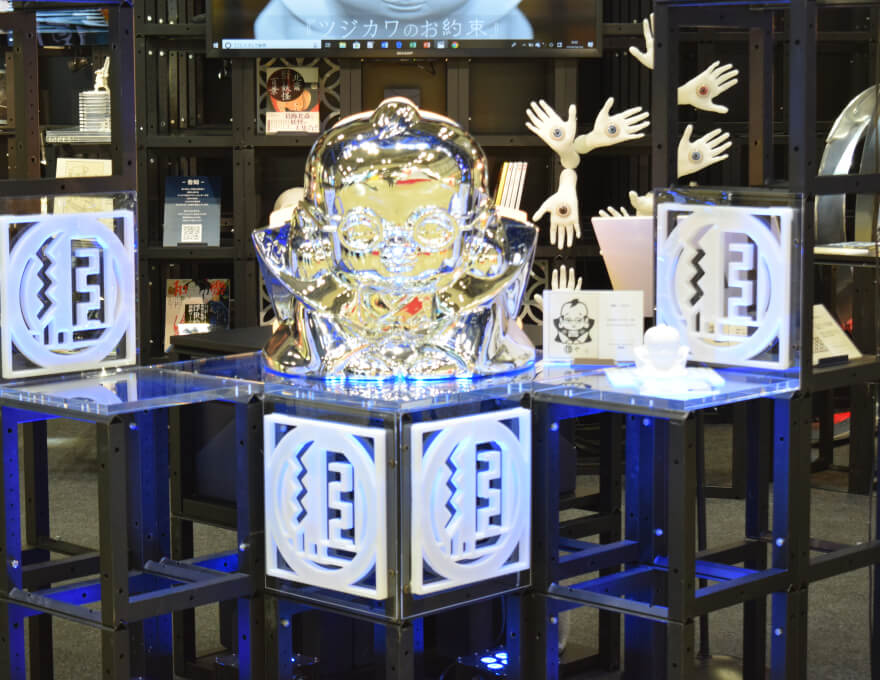

Large-scale 3D printer modeling
It is capable of modeling up to the size range of 1800mm (height) x 1500mm (width) x 1200mm (depth). Fast molding speed. Lightweight due to hollow interior. Enormous and complex shapes can be modeled by partitioning.
Modeling method
UV LED curing method
Modeling size
[X-axis] 1500mm x [Y-axis] 1200mm x [Z-axis] 1800mm
Modeling pitch
1.3mm/1.0mm/0.8mm
Compatible resin
Photopolymer GEL
Uses
Sign advertising, illumination, POP displays, sculptures, character modeling, large-scale design prototypes, interior decoration

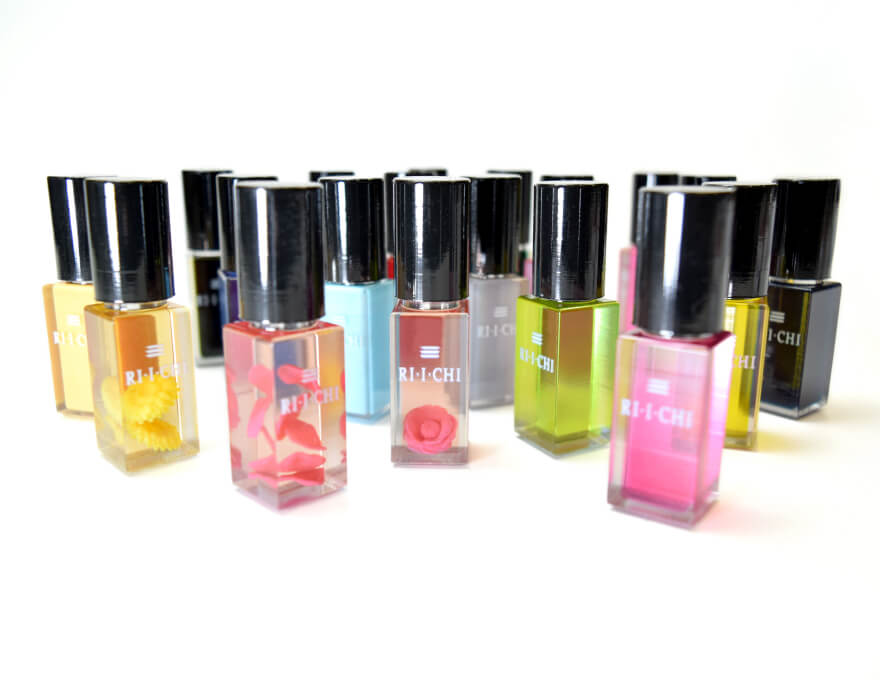

Precision full-color 3D printer modeling
Full-color output as well as transparent color output is possible. Transparent color mock-ups such as tail lamps are conventionally made by cutting resin materials such as acrylic, but we can shorten lead time and reduce costs by using 3D printers.
Modeling method
Polyjet method (UV curable acrylic resin)
Modeling pitch
minimum 14μm (0.014mm) / normal 27μm (0.027mm)
Modeling size
[X-axis] 490mm x [Y-axis] 390mm x [Z-axis] 200mm
Modeling resolution
[X-axis] 490mm x [Y-axis] 390mm x [Z-axis] 200mm
Compatible resins
*Transition to the material brochure
Usage
Various mock-ups
FDM 3D printer modeling
Molding method
FDM (fused deposition modeling)
Stacking pitch
0.3 mm to 0.9 mm
Molding size
[X-axis] 1000 mm × [Y-axis] 1000 mm × [Z-axis] 1000 mm
Compatible resin
PLA resin
